Kit
Kit (formerly ConvertKit) is the hub for audience growth, marketing automation, and digital products selling.
Data integration: Skyvia supports importing data to and from Kit, exporting Kit data to CSV files, and replicating Kit data to relational databases.
Backup: Skyvia Backup does not support Kit backup.
Query: Skyvia Query supports Kit.
Establishing Connection
To establish a connection to Kit in Skyvia, you must specify the API secret.
Getting Credentials

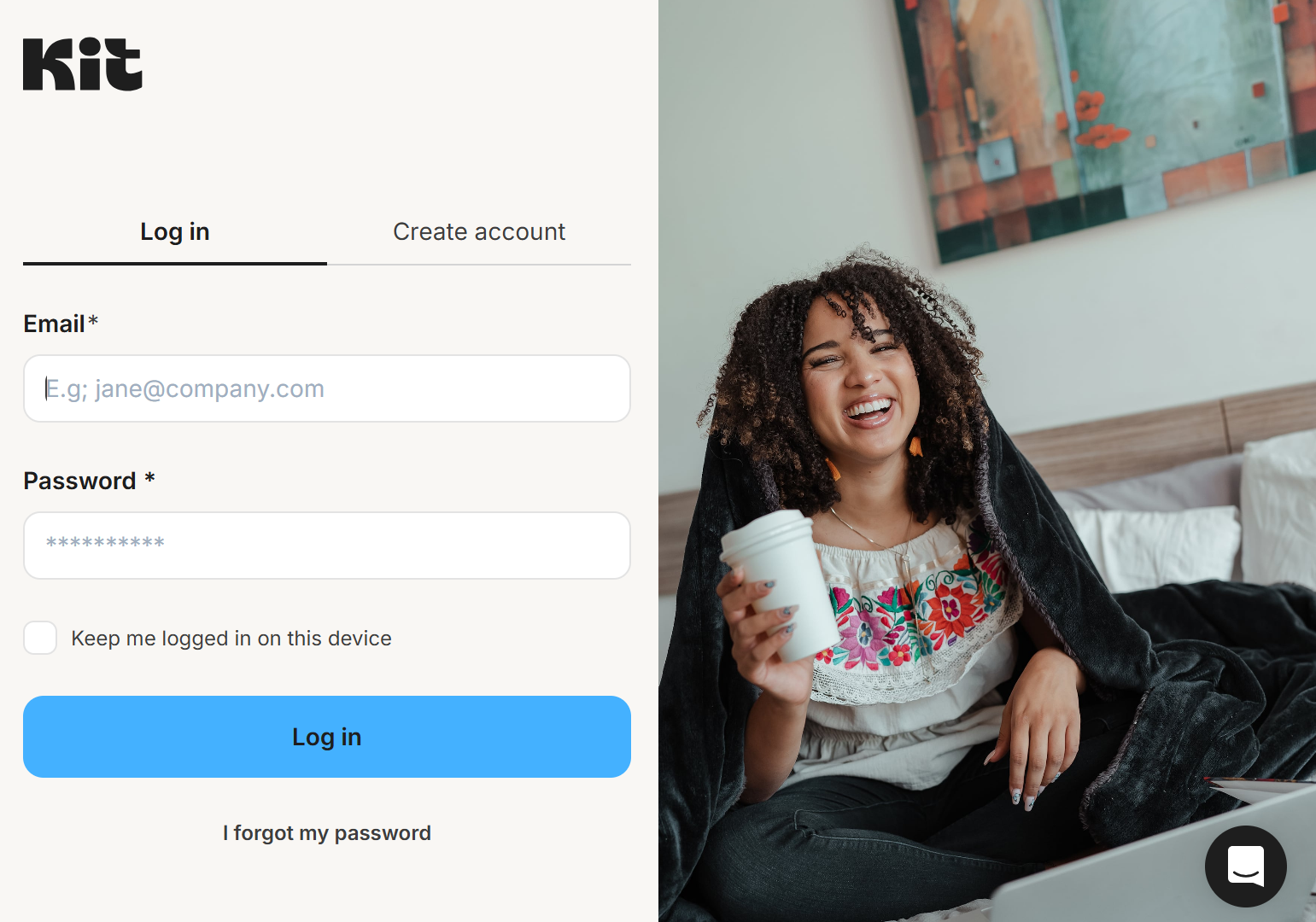

To obtain the API secret, you have to log in to Kit and perform the following actions:
- Click the username in the top right corner of the page and select Settings.
- In the left menu, select Developer.

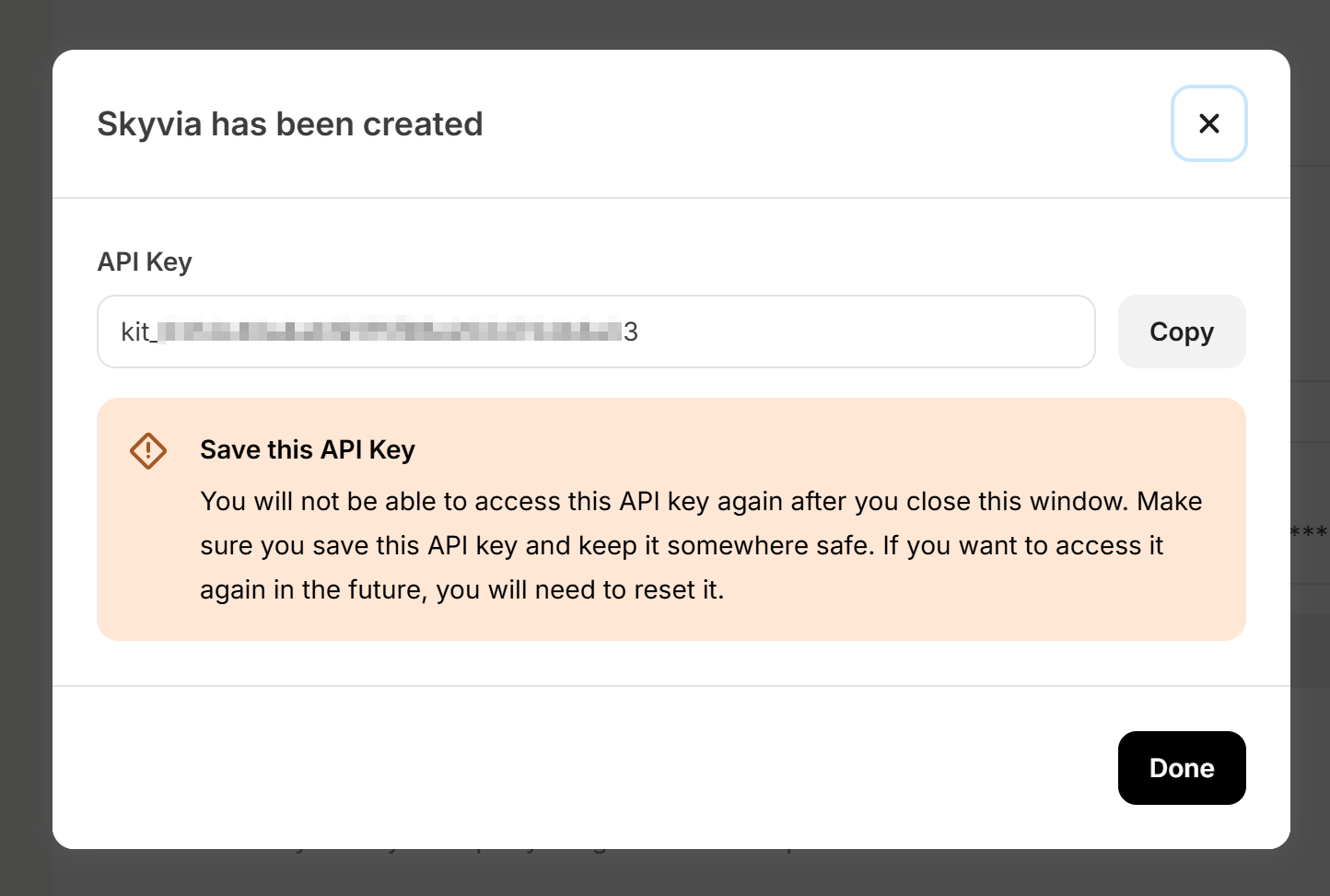

- Click Show in the API Secret box.
- Copy the API Secret.

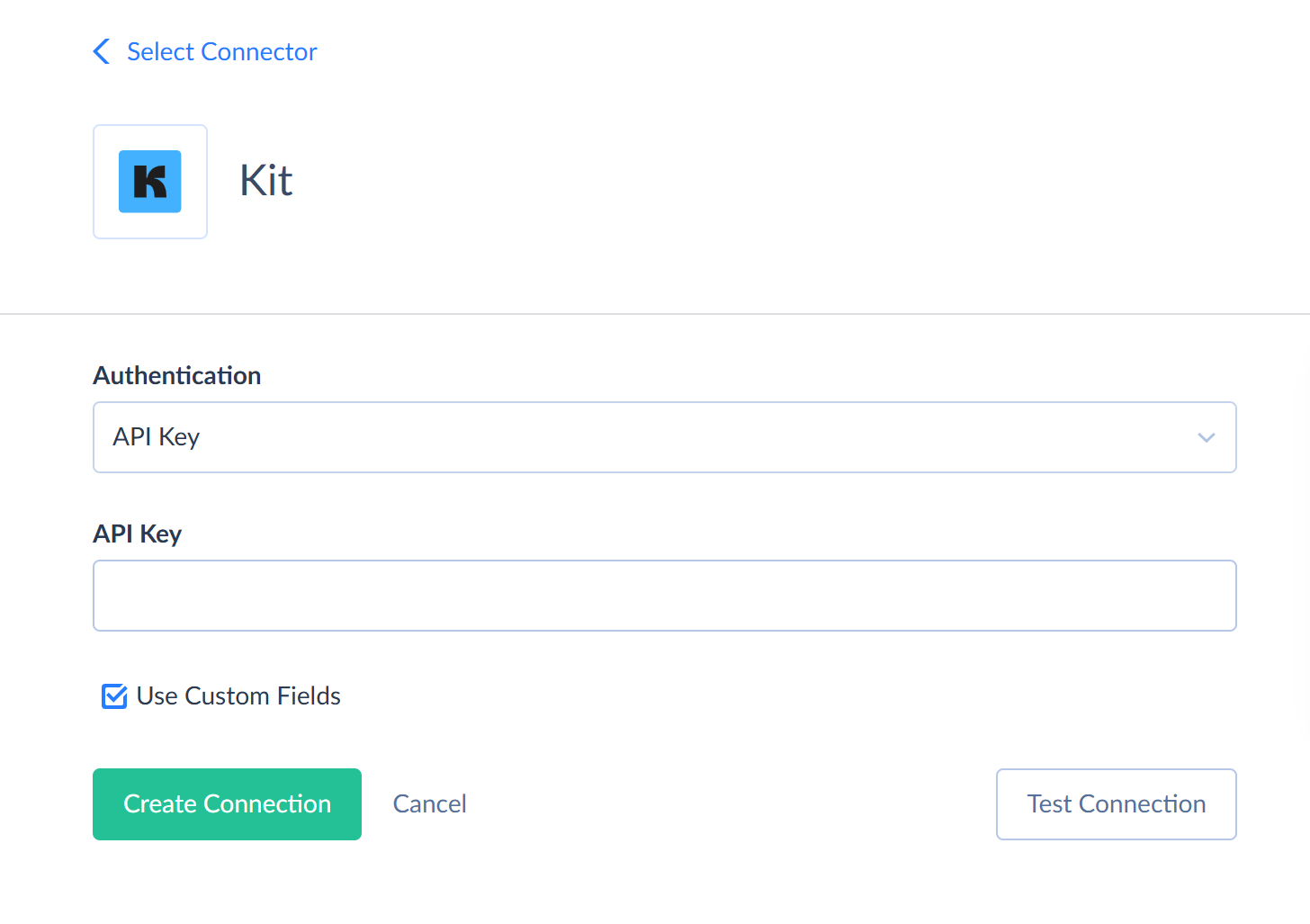

Creating Connection
Paste the obtained value into the API secret box in Skyvia.
Additional Connection Parameters
Suppress Extended Requests
Kit API returns only part of the fields for some objects when querying multiple records. To query the values of additional fields, Skyvia performs additional extended requests for each record of such an object. However, this can decrease performance and significantly increase the number of API calls. The list of additional fields is the following:
| Object | Field |
|---|---|
| Broadcasts | Description, Content, Public, PublishedAt, SendAt, ThumbnailALT, ThumbnailUrl, EmailAddress, EmailLayoutTemplate |
| Sequences | SendTime, SendTimeZone, RecipientRules_LandingPages, RecipientRules_Courses, RecipientRules_Tags, RecipientRules_Lists, Mon, Tue, Wed, Thr, Fri, Sat, Sun, SendTimeZoneAbbr, EmailTemplates |
The SequencesEmailTemplates object is read through the Sequence object. It means that Skyvia reads the Sequence object first obtaining the EmailTemplates field using the extended requests, and then gets the existing SequencesEmailTemplates records for each SequenceId.
To reduce the number of API calls, select the Suppress Extended Requests checkbox. However, please note that some of the fields in such objects will not be available in Skyvia (will return empty values) even if they have values in Kit because its API does not return them without extended requests.
Use Custom Fields
Select this checkbox to make Kit custom fields available in Skyvia.
Connector Specifics
Filtering Specifics
Kit API supports the following native filters:
| Object | Operator | Field |
|---|---|---|
| Subscribers | = |
EmailAddress |
| CancelledSubscribers | = |
EmailAddress |
Use these filters to improve performance and save API calls. You can use filters with other fields or operators, but it may increase API call usage.
Object Peculiarities
Subscribers
Subscribers object stores the list of confirmed (active) subscribers. You can find canceled subscribers in the CancelledSubscribers object. You can select the unsubscribed users’ records from CancelledSubscribers. You can get the specific unsubscribed users’ records from the Subscriptions object only using the filter by Id. Such records are displayed with the canceled state value.
Purchases
The TranzactionId field is required for INSERT operation. Skyvia updates the record if the mapped TranzactionId value already exists in the object. If the TranzactionId value is absent in the object, Skyvia inserts the record.
Broadcasts
To import into the Broadcasts object, at least one of the fields Subject, Description or Content must be mapped.
TagSubscriptions, FormSubscriptions, and SequenceSubscriptions
Due to Kit API specifics, the Insert operation for the TagSubscriptions, FormSubscriptions, and SequenceSubscriptions objects works the following way. If a subscriber already exists for a particular tag, form or sequence, the Insert operation will update the existing record in the TagSubscriptions, FormSubscriptions, or SequenceSubscriptions.
Custom Fields
The following Kit objects support custom fields: Subscribers, CancelledSubscribers, TagSubscriptions, FormSubscriptions, SequenceSubscriptions. All custom fields are strings. The Subscribers and CancelledSubscribers custom fields support the UPDATE operation. The TagSubscriptions, FormSubscriptions, and SequenceSubscriptions object support the INSERT operation.
Custom fields in the TagSubscriptions, FormSubscriptions and SequenceSubscriptions objects have a Subscriber_* prefix in their names.
Incremental Replication and Synchronization support
Replication with Incremental Updates is supported for the following objects: Broadcasts, CancelledSubscribers, Forms, FormSubscriptions, Sequences, SequenceSubscriptions, Subscribers, SubscriberTags, Tags, TagSubscriptions.
Incremental Replication detects only the new records because all the objects contain only the CreatedDate field, and there is no UpdatedDate field, which is required for replicating the updated records.
Skyvia does not support Synchronization for Kit.
DML Operations Supports
| Operation | Object |
|---|---|
| INSERT, UPDATE, DELETE | Broadcasts, CustomFields |
| INSERT, DELETE | TagSubscriptions |
| UPDATE | Subscribers |
| INSERT | FormSubscriptions, Purchases, SequenceSubscriptions, Tags |
Stored Procedures
Skyvia represents part of the supported Kit features as stored procedures. You can call a stored procedure, for example, as a text of the command in the ExecuteCommand action in a Target component of a Data Flow or in Query.
UnsubscribeSubscriber
The following command unsubscribes an email address from all forms and sequences.
call UnsubscribeSubscriber(:Email)
DestroyWebhook
To delete webhook, use the command
call DestroyWebhook(:id)
CreateWebhook
The following command creates a webhook that will be called when a subscriber event occurs.
call CreateWebhook(:target_url,:event)
| PARAMETER NAME | DESCRIPTION |
|---|---|
| Target_url | The URL that will receive subscriber data when the event is triggered |
| Event | JSON object that includes the trigger name and extra information about the event, for example { "name": "subscriber.subscriber_activate" } |
These are the available event types:
- “subscriber.subscriber_activate”
- “subscriber.subscriber_unsubscribe”
- “subscriber.form_subscribe”, required parameter :form_id [Integer]
- “subscriber.course_subscribe”, required parameter :course_id [Integer]
- “subscriber.course_complete”, required parameter :course_id [Integer]
- “subscriber.link_click”, required parameter :initiator_value [String] as a link URL
- “subscriber.product_purchase”, required parameter :product_id [Integer]
- “subscriber.tag_add”, required parameter :tag_id [Integer]
- “subscriber.tag_remove”, required parameter :tag_id [Integer]
- “purchase.purchase_create”
For example call CreateWebhook('http://example.com/incoming','{"name": "subscriber.subscriber_activate"}')
Supported Actions
Skyvia supports all the common actions for Kit.
