SQLiteDemoProvider

SQLiteDemoProvider is a demo SDK connector provider that works with a local SQLite database. It demonstrates basic SDK connector features - reading data, looking for records, inserting, updating, and deleting data. It uses the sample database sdkdemo.db, having a predefined structure with a single Products table, and the demo provider offers methods to work only with this table. The provider creates and fills this table when calling the Init method, and the database is also created automatically if not present.

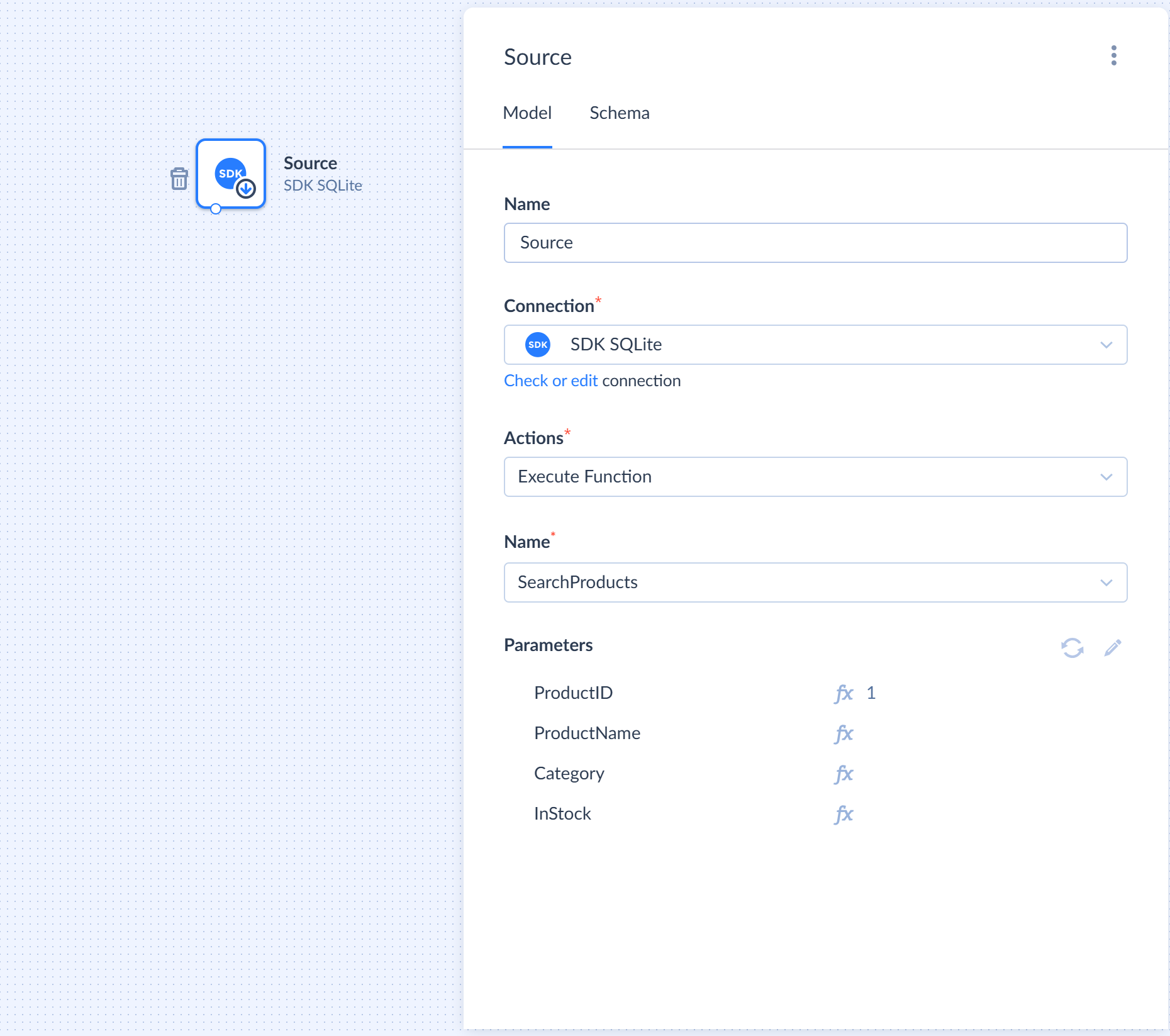

Source component
using System;
using System.Collections.Generic;
using System.Threading;
using System.Threading.Tasks;
using Devart.Data.SQLite;
using Devart.Skyvia.Providers.SDK.Attributes;

namespace Devart.Skyvia.Providers.SDK.Demo {

  /// <summary>
  /// A demo provider for SQLite that manages product data locally.
  /// </summary>
  public class SQLiteDemoProvider : SDKProvider {

    private SQLiteConnection connection;
    private const string connectionString = "Data Source=sdkdemo.db;FailIfMissing=False";

    public SQLiteDemoProvider() {
    }

    /// <summary>
    /// Initializes the SQLite connection and opens the database file.
    /// </summary>
    public override async Task Init(CancellationToken cancellationToken) {

      connection = new SQLiteConnection(connectionString);
      await connection.OpenAsync(cancellationToken);
    }

    /// <summary>
    /// Performs a lightweight connectivity check.
    /// </summary>
    protected override async Task Test(CancellationToken cancellationToken) {

      using (var cmd = connection.CreateCommand()) {
        cmd.CommandText = "SELECT 1";
        await cmd.ExecuteNonQueryAsync(cancellationToken);
      }
    }

    /// <summary>
    /// Closes the database connection and releases resources.
    /// </summary>
    public override void Dispose() {

      if (connection != null) {
        if (connection.State == System.Data.ConnectionState.Open)
          connection.Close();
        connection.Dispose();
        connection = null;
      }
    }

    /// <summary>
    /// Creates the 'Products' table and populates it with sample data.
    /// </summary>
    [ProviderMethod(ProviderActionType.Action, "Init Data")]
    public async Task InitData(CancellationToken cancellationToken) {

      using (var cmd = connection.CreateCommand()) {
        cmd.CommandText = @"
CREATE TABLE `Products` (
  ProductID INTEGER PRIMARY KEY AUTOINCREMENT,
  ProductName VARCHAR(100) NOT NULL,
  Category VARCHAR(100) NOT NULL,
  InStock BOOLEAN NOT NULL,
  Price DOUBLE NOT NULL
 );
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('iPhone 15 Pro', 'Electronics', 1, 999.99);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('MacBook Air M2', 'Computers', 1, 1199.50);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Sony WH-1000XM5 Headphones', 'Audio', 1, 348.00);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Samsung 32-Inch 4K Monitor', 'Peripherals', 0, 449.25);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Logitech MX Master 3S Mouse', 'Peripherals', 1, 99.00);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Mechanical RGB Keyboard', 'Peripherals', 1, 159.99);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Apple Watch Series 9', 'Gadgets', 1, 399.00);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Samsung T7 Portable SSD 1TB', 'Storage', 0, 89.50);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('iPad Pro 11-inch', 'Electronics', 1, 799.00);
INSERT INTO Products (ProductName, Category, InStock, Price) VALUES ('Bose Bluetooth Speaker', 'Audio', 1, 129.00);";
        await cmd.ExecuteNonQueryAsync(cancellationToken);
      }
    }

    /// <summary>
    /// Cleans up the demonstration environment by removing the 'Products' table.
    /// </summary>
    [ProviderMethod(ProviderActionType.Action, "Clear Data")]
    public async Task ClearData(CancellationToken cancellationToken) {

      try {
        using (var cmd = connection.CreateCommand()) {
          cmd.CommandText = "DROP TABLE `Products`";
          await cmd.ExecuteNonQueryAsync(cancellationToken);
        }
      }
      catch(SQLiteException ex) {
        if (!ex.Message.Contains("no such table"))
          throw;
      }
    }


    /// <summary>
    /// Retrieves the complete list of products from the data source.
    /// </summary>
    /// <remarks>
    /// This method is compatible with Source components in DataFlow,
    /// as well as Action components in ControlFlow or Automation.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Source | ProviderActionType.Action)]
    public async Task<IEnumerable<Product>> GetAllProducts(CancellationToken cancellationToken) {

      List<Product> products = new List<Product>();
      using (var cmd = connection.CreateCommand()) {
        cmd.CommandText = "SELECT * FROM `Products`";
        using (var rd = await cmd.ExecuteReaderAsync(cancellationToken)) {
          while (await rd.ReadAsync(cancellationToken)) {
            Product product = new Product();
            product.ProductID = rd.GetInt64(rd.GetOrdinal("ProductID"));
            product.ProductName = !rd.IsDBNull(rd.GetOrdinal("ProductName")) ? rd.GetString(rd.GetOrdinal("ProductName")) : null;
            product.Category = !rd.IsDBNull(rd.GetOrdinal("Category")) ? rd.GetString(rd.GetOrdinal("Category")) : null;
            product.InStock = !rd.IsDBNull(rd.GetOrdinal("InStock")) && rd.GetBoolean(rd.GetOrdinal("InStock"));
            product.Price = !rd.IsDBNull(rd.GetOrdinal("Price")) ? rd.GetDouble(rd.GetOrdinal("Price")) : 0.0;
            products.Add(product);
          }
        }
      }
      return products;
    }


    /// <summary>
    /// Searches for products based on flexible criteria such as ID, name, category, or stock status.
    /// </summary>
    /// <remarks>
    /// This method is compatible with Source and Lookup components in DataFlow,
    /// as well as Action components in ControlFlow or Automation.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Source | ProviderActionType.Lookup | ProviderActionType.Action)]
    public async Task<IEnumerable<Product>> SearchProducts(SearchProductsRequest parameters, CancellationToken cancellationToken) {

      List<Product> products = new List<Product>();
      using (var cmd = connection.CreateCommand()) {

        List<string> filters = new List<string>();
        if (parameters.ProductID.HasValue) {
          filters.Add("ProductID = :id");
          cmd.Parameters.Add("id", SQLiteType.Int64).Value = parameters.ProductID.Value;
        }

        if (!string.IsNullOrEmpty(parameters.ProductName)) {
          filters.Add("ProductName = :name");
          cmd.Parameters.Add("name", SQLiteType.Text).Value = parameters.ProductName;
        }

        if (!string.IsNullOrEmpty(parameters.Category)) {
          filters.Add("Category = :cat");
          cmd.Parameters.Add("cat", SQLiteType.Text).Value = parameters.Category;
        }

        if (parameters.InStock.HasValue) {
          filters.Add("InStock = :stock");
          cmd.Parameters.Add("stock", SQLiteType.Int32).Value = parameters.InStock.Value ? 1 : 0;
        }

        string sql = "SELECT * FROM `Products`";
        if (filters.Count > 0) {
          sql += " WHERE " + string.Join(" AND ", filters);
        }

        cmd.CommandText = sql;
        using (var rd = await cmd.ExecuteReaderAsync(cancellationToken)) {
          while (await rd.ReadAsync(cancellationToken)) {
            products.Add(new Product {
              ProductID = rd.GetInt64(rd.GetOrdinal("ProductID")),
              ProductName = !rd.IsDBNull(rd.GetOrdinal("ProductName")) ? rd.GetString(rd.GetOrdinal("ProductName")) : null,
              Category = !rd.IsDBNull(rd.GetOrdinal("Category")) ? rd.GetString(rd.GetOrdinal("Category")) : null,
              InStock = !rd.IsDBNull(rd.GetOrdinal("InStock")) && rd.GetBoolean(rd.GetOrdinal("InStock")),
              Price = !rd.IsDBNull(rd.GetOrdinal("Price")) ? rd.GetDouble(rd.GetOrdinal("Price")) : 0.0
            });
          }
        }
      }
      return products;
    }


    /// <summary>
    /// Retrieves a single product by its unique identifier.
    /// </summary>
    /// <remarks>
    /// This method is primarily used by Lookup components in DataFlow for data enrichment
    /// and by Action components in ControlFlow or Automation for single-record retrieval.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Lookup | ProviderActionType.Action)]
    public async Task<Product> GetProduct(long parameters, CancellationToken cancellationToken) {

      using (var cmd = connection.CreateCommand()) {
        cmd.CommandText = "SELECT * FROM `Products` WHERE ProductID = :id";
        cmd.Parameters.Add("id", SQLiteType.Int64).Value = parameters;
        using (var rd = await cmd.ExecuteReaderAsync(cancellationToken)) {
          if (await rd.ReadAsync(cancellationToken)) {
            Product product = new Product();
            product.ProductID = rd.GetInt64(rd.GetOrdinal("ProductID"));
            product.ProductName = !rd.IsDBNull(rd.GetOrdinal("ProductName")) ? rd.GetString(rd.GetOrdinal("ProductName")) : null;
            product.Category = !rd.IsDBNull(rd.GetOrdinal("Category")) ? rd.GetString(rd.GetOrdinal("Category")) : null;
            product.InStock = !rd.IsDBNull(rd.GetOrdinal("InStock")) && rd.GetBoolean(rd.GetOrdinal("InStock"));
            product.Price = !rd.IsDBNull(rd.GetOrdinal("Price")) ? rd.GetDouble(rd.GetOrdinal("Price")) : 0.0;
            return product;
          }
        }
      }
      return null;
    }


    /// <summary>
    /// Performs a batch insertion of products into the database.
    /// </summary>
    /// <remarks>
    /// This method is designed for Target components in DataFlow.
    /// The number and order of results strictly match the input parameters to provide per-row execution logging.
    /// If an error occurs during the insertion of a specific row, the corresponding result object
    /// will contain the error details in the <c>ErrorMessage</c> field, allowing the pipeline to continue
    /// processing subsequent records.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Target)]
    public async Task<IEnumerable<TargetProductResult>> InsertProducts(IEnumerable<InsertProductParameter> parameters, CancellationToken cancellationToken) {

      List<TargetProductResult> results = new List<TargetProductResult>();
      foreach (var param in parameters) {
        try {
          using (var cmd = connection.CreateCommand()) {
            cmd.CommandText = @"
                    INSERT INTO `Products` (ProductName, Category, InStock, Price)
                    VALUES (:name, :cat, :stock, :price);
                    SELECT last_insert_rowid();";

            cmd.Parameters.Add("name", SQLiteType.Text).Value = param.ProductName;
            cmd.Parameters.Add("cat", SQLiteType.Text).Value = param.Category;
            cmd.Parameters.Add("stock", SQLiteType.Int32).Value = param.InStock ? 1 : 0;
            cmd.Parameters.Add("price", SQLiteType.Double).Value = param.Price;

            var id = (long)await cmd.ExecuteScalarAsync(cancellationToken);
            results.Add(new TargetProductResult { ProductID = id });
          }
        }
        catch (Exception ex) {
          results.Add(new TargetProductResult {
            ErrorMessage = $"Error inserting {param.ProductName}: {ex.Message}"
          });
        }
      }
      return results;
    }


    /// <summary>
    /// Performs a batch update of existing products in the database.
    /// </summary>
    /// <remarks>
    /// This method is designed for Target components in DataFlow.
    /// The number and order of results strictly match the input parameters to provide per-row execution logging.
    /// If an error occurs during the update of a specific row, the corresponding result object
    /// will contain the error details in the <c>ErrorMessage</c> field, allowing the pipeline to continue
    /// processing subsequent records.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Target)]
    public async Task<IEnumerable<TargetProductResult>> UpdateProducts(IEnumerable<UpdateProductParameter> parameters, CancellationToken cancellationToken) {

      List<TargetProductResult> results = new List<TargetProductResult>();
      foreach (var param in parameters) {
        try {
          using (var cmd = connection.CreateCommand()) {
            cmd.CommandText = @"
                    UPDATE `Products`
                    SET ProductName = :name,
                        Category = :cat,
                        InStock = :stock,
                        Price = :price
                    WHERE ProductID = :id";

            cmd.Parameters.Add("id", SQLiteType.Int64).Value = param.ProductID;
            cmd.Parameters.Add("name", SQLiteType.Text).Value = param.ProductName;
            cmd.Parameters.Add("cat", SQLiteType.Text).Value = param.Category;
            cmd.Parameters.Add("stock", SQLiteType.Int32).Value = param.InStock ? 1 : 0;
            cmd.Parameters.Add("price", SQLiteType.Double).Value = param.Price;

            int rowsAffected = await cmd.ExecuteNonQueryAsync(cancellationToken);

            if (rowsAffected == 0) {
              results.Add(new TargetProductResult {
                ProductID = param.ProductID,
                ErrorMessage = "Record not found"
              });
            }
            else {
              results.Add(new TargetProductResult { ProductID = param.ProductID });
            }
          }
        }
        catch (Exception ex) {
          results.Add(new TargetProductResult {
            ProductID = param.ProductID,
            ErrorMessage = ex.Message
          });
        }
      }
      return results;
    }

    /// <summary>
    /// Performs a batch deletion of products from the database using their unique identifiers.
    /// </summary>
    /// <remarks>
    /// This method is designed for Target components in DataFlow.
    /// The number and order of results strictly match the input parameters to provide per-row execution logging.
    /// If an error occurs during the delete of a specific row, the corresponding result object
    /// will contain the error details in the <c>ErrorMessage</c> field, allowing the pipeline to continue
    /// processing subsequent records.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Target)]
    public async Task<IEnumerable<TargetProductResult>> DeleteProducts(IEnumerable<DeleteProductParameter> parameters, CancellationToken cancellationToken) {

      List<TargetProductResult> results = new List<TargetProductResult>();
      foreach (var param in parameters) {
        try {
          using (var cmd = connection.CreateCommand()) {
            cmd.CommandText = @"DELETE FROM `Products` WHERE ProductID = :id";
            cmd.Parameters.Add("id", SQLiteType.Int64).Value = param.ProductID;
            int rowsAffected = await cmd.ExecuteNonQueryAsync(cancellationToken);
            if (rowsAffected == 0) {
              results.Add(new TargetProductResult {
                ProductID = param.ProductID,
                ErrorMessage = "Record not found"
              });
            }
            else {
              results.Add(new TargetProductResult { ProductID = param.ProductID });
            }
          }
        }
        catch (Exception ex) {
          results.Add(new TargetProductResult {
            ProductID = param.ProductID,
            ErrorMessage = ex.Message
          });
        }
      }
      return results;
    }


    /// <summary>
    /// Inserts a single product into the database and returns the created record.
    /// <remarks>
    /// This method is designed for Action components in ControlFlow or Automation.
    /// If an error occurs, an exception is thrown, causing the specific task or automation step to fail.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Action)]
    public async Task<Product> InsertProduct(InsertProductParameter parameters, CancellationToken cancellationToken) {

      using (var cmd = connection.CreateCommand()) {

        cmd.CommandText = @"
                    INSERT INTO `Products` (ProductName, Category, InStock, Price)
                    VALUES (:name, :cat, :stock, :price);
                    SELECT last_insert_rowid();";

        cmd.Parameters.Add("name", SQLiteType.Text).Value = parameters.ProductName;
        cmd.Parameters.Add("cat", SQLiteType.Text).Value = parameters.Category;
        cmd.Parameters.Add("stock", SQLiteType.Int32).Value = parameters.InStock ? 1 : 0;
        cmd.Parameters.Add("price", SQLiteType.Double).Value = parameters.Price;

        var id = (long)await cmd.ExecuteScalarAsync(cancellationToken);

        Product product = new Product();
        product.ProductID = id;
        product.ProductName = parameters.ProductName;
        product.Category = parameters.Category;
        product.InStock = parameters.InStock;
        product.Price = parameters.Price;
        return product;
      }
    }


    /// <summary>
    /// Updates the details of an existing product in the database.
    /// <remarks>
    /// This method is designed for Action components in ControlFlow or Automation.
    /// If an error occurs, an exception is thrown, causing the specific task or automation step to fail.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Action)]
    public async Task UpdateProduct(UpdateProductParameter parameters, CancellationToken cancellationToken) {

      using (var cmd = connection.CreateCommand()) {

        cmd.CommandText = @"
                    UPDATE `Products`
                    SET ProductName = :name,
                        Category = :cat,
                        InStock = :stock,
                        Price = :price
                    WHERE ProductID = :id";
        cmd.Parameters.Add("id", SQLiteType.Int64).Value = parameters.ProductID;
        cmd.Parameters.Add("name", SQLiteType.Text).Value = parameters.ProductName;
        cmd.Parameters.Add("cat", SQLiteType.Text).Value = parameters.Category;
        cmd.Parameters.Add("stock", SQLiteType.Int32).Value = parameters.InStock ? 1 : 0;
        cmd.Parameters.Add("price", SQLiteType.Double).Value = parameters.Price;

        int rowsAffected = await cmd.ExecuteNonQueryAsync(cancellationToken);
        if (rowsAffected == 0)
          throw new Exception("Record not found");
      }
    }


    /// <summary>
    /// Deletes a specific product from the database using its unique identifier.
    /// <remarks>
    /// This method is designed for Action components in ControlFlow or Automation.
    /// If an error occurs, an exception is thrown, causing the specific task or automation step to fail.
    /// </remarks>
    [ProviderMethod(ProviderActionType.Action)]
    public async Task DeleteProduct(DeleteProductParameter parameters, CancellationToken cancellationToken) {

      using (var cmd = connection.CreateCommand()) {

        cmd.CommandText = @"DELETE FROM `Products` WHERE ProductID = :id";
        cmd.Parameters.Add("id", SQLiteType.Int64).Value = parameters.ProductID;
        int rowsAffected = await cmd.ExecuteNonQueryAsync(cancellationToken);
        if (rowsAffected == 0)
          throw new Exception("Record not found");
      }
    }


    /// <summary>
    /// Represents a product entity within the system.
    /// This model is used for data exchange in Source, Lookup, and Action operations.
    /// </summary>
    public class Product {

      public long ProductID { get; set; }
      public string ProductName { get; set; }
      public string Category { get; set; }
      public bool InStock { get; set; }
      public double Price { get; set; }
    }


    /// <summary>
    /// Represents a set of optional filters used for searching products.
    /// </summary>
    /// <remarks>
    /// If a property is null, the corresponding filter is ignored during the search.
    /// Combining multiple properties results in a logical AND operation.
    /// </remarks>
    public class SearchProductsRequest {

      public long? ProductID { get; set; }
      public string ProductName { get; set; }
      public string Category { get; set; }
      public bool? InStock { get; set; }
    }


    /// <summary>
    /// Represents the set of parameters required to create a new product.
    /// </summary>
    /// <remarks>
    /// All properties in this class are mandatory. If any required field is missing,
    /// the insertion process will fail at the validation or database level.
    /// </remarks>
    public class InsertProductParameter {

      [Required]
      public string ProductName { get; set; }
      [Required]
      public string Category { get; set; }
      [Required]
      public bool InStock { get; set; }
      [Required]
      public double Price { get; set; }
    }

    /// <summary>
    /// Represents the parameters required to update an existing product record.
    /// </summary>
    /// <remarks>
    /// All properties are required to ensure a complete update of the record.
    /// The <see cref="ProductID"/> is used to locate the specific record in the database.
    /// </remarks>
    public class UpdateProductParameter {

      [Required]
      public long ProductID { get; set; }
      [Required]
      public string ProductName { get; set; }
      [Required]
      public string Category { get; set; }
      [Required]
      public bool InStock { get; set; }
      [Required]
      public double Price { get; set; }
    }

    /// <summary>
    /// Represents the parameters required to delete a specific product.
    /// </summary>
    public class DeleteProductParameter {

      [Required]
      public long ProductID { get; set; }
    }


    // <summary>
    /// Represents the result of a single row operation within a batch target process.
    /// </summary>
    /// <remarks>
    /// The SDK engine matches these results to the input rows by their index.
    /// To support Error Output in Target componets in DataFlow, the <see cref="ErrorMessage"/> field is marked with
    /// a special display name metadata.
    /// </remarks>
    public class TargetProductResult {

      /// <summary>
      /// Contains the identifier of the record after a successful operation.
      /// Could be null if the operation failed.
      /// </summary>
      public long? ProductID { get; set; }

      /// <summary>
      /// Contains the error details if the row processing failed.
      /// </summary>
      /// <remarks>
      /// The <c>[Display("$$error$$")]</c> attribute is mandatory for the Skyvia engine
      /// to recognize this field as the official error message and enable Error Output routing.
      /// </remarks>
      [Display("$$error$$")]
      public string ErrorMessage { get; set; }
    }
  }
}
